Indicative particulars
Figures below are drawn from the SDARI key-features brochure. Exact builder, yard hull number, IMO, delivery date and commercial terms are released to qualified buyers only after signature of a non-disclosure undertaking.
| Vessel type | Gearless single-screw wide-ocean container ship |
|---|---|
| Designer | Shanghai Merchant Ship Design & Research Institute (SDARI) — Sea Lion 2700 |
| Status | Newbuild · Chinese yard · delivery window released under NDA |
| Flag | China flag |
| Classification society | CCS — CSA Container Ship, PSPC(B), FL(WW,25), SOLAS II-2 Reg.19, Loading Computer (S,I), CLC(V), In-Water Survey; CSM AUT-0, SCM, G-EP(AFS), G-ECO, NEC(SCRS), AMPS |
| Length overall | abt. 188.80 m |
| Length between perpendiculars | abt. 185.40 m |
| Breadth, moulded | 32.20 m |
| Depth, moulded | 17.10 m |
| Draft (design), moulded | 9.50 m |
| Draft (scantling), moulded | 11.50 m |
| Deadweight at scantling draft | abt. 34,790 MT |
| Container intake | On deck 1,733 TEU (13 row / 7 tier) · In hold 960 TEU (11 row / 6 tier) · Total 2,693 TEU |
| Homogeneous intake (14 t/TEU at Ts) | abt. 2,010 TEU |
| Reefer plugs (5.0 kW each) | 400 FEU (360 on deck · 40 in hold) |
| Hatch covers / stack load | Steel pontoon with flexible bearing pads; on deck 90 t / 20ft, 120 t / 40ft (max 35 t/panel); in hold 30.5 t / 20ft & 40ft |
| Main engine | J-ENG 6UEC50LSH-Eco-C2-LPSCR Tier III, SMCR 10,680 kW × 108 rpm |
| Diesel generators | 4 × 980 kWe (LP-SCR) + 1 × 180 kWe emergency · AMP 3 MVA AC 6.6 kV (fixed) |
| Service speed (design draft) | abt. 18.0 kn at CSR, 15% sea margin |
| ME daily consumption (Tier III, LCV 42,700 kJ/kg MGO) | abt. 43.3 t/day at CSR |
| Cruising range | abt. 11,000 nm (M/E + 1 DG on VLSFO / MGO at CSR) |
| Capacities | HFO 1,230 m³ · MGO 360 m³ · FW 140 m³ · DW 60 m³ · Ballast 11,400 m³ |
| Rudder / ESD | Semi-balanced type · S-bow · LED lighting · UV BWTS 600 m³/h (USCG / IMO) |
| Complement | 26 P + 6 Suez crew |
Photographs

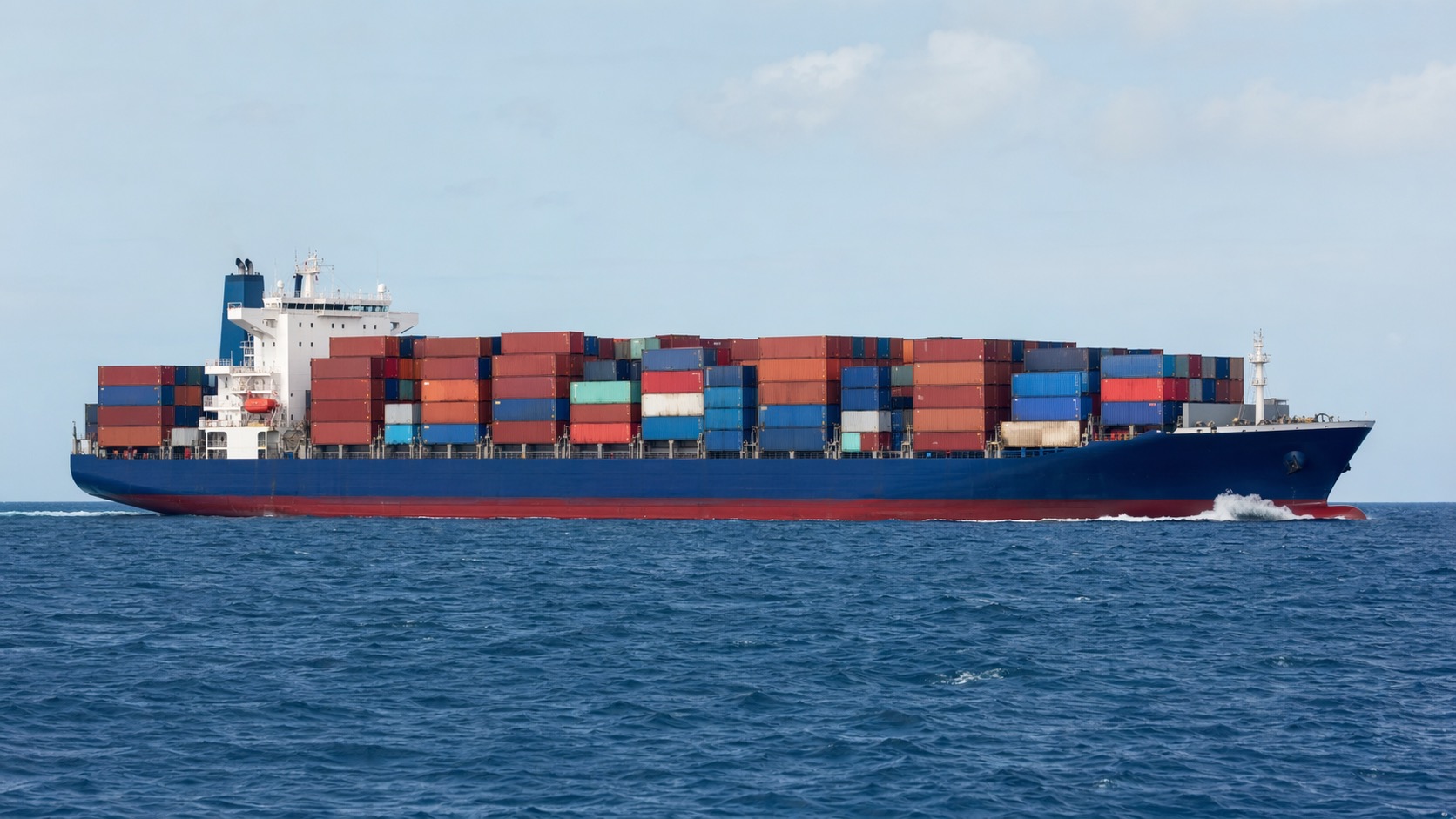

Representative image shown. Actual yard photos, general arrangement drawing and equipment schedules are shared with qualified buyers under NDA.
Documentation available to qualified buyers
- SDARI Sea Lion 2700 key-features brochure & full specification
- General Arrangement Plan
- Container stowage, reefer and lashing plans
- Full-ship equipment maker list
- EEDI & Tier III compliance package
- AMPS (shore power) interface schedule
Documents are released after signature of a standard confidentiality undertaking. Please contact our sale & purchase desk for the NDA template.
