Indicative particulars
Figures below are drawn from the contract outline specification. Exact builder, yard hull number, IMO, delivery date and commercial terms are released to qualified buyers only after signature of a non-disclosure undertaking.
| Vessel type | Single-screw ocean-going kamsarmax bulk carrier · flush deck, aft-machinery |
|---|---|
| Status | Newbuild · Chinese yard · delivery window Q4 — released under NDA |
| Hull material | Steel (mild + higher-tensile, YP 315 / 355) |
| Flag | Flag of convenience · to suit |
| Classification society | CCS — CSA Bulk Carrier, CSR, BC-A (Holds 2, 4 & 6 may be empty), COMPASS(R,D,F), GRAB[30], PSPC(B), Ice Class B, Loading Computer (S,I,G), ESP, In-Water Survey; CSM AUT-0, G-EP, G-ECO |
| Length overall | abt. 229.00 m |
| Length between perpendiculars | 225.50 m |
| Breadth, moulded | 32.26 m |
| Depth, moulded | 20.35 m |
| Draft (design), moulded | 12.20 m |
| Draft (scantling), moulded | 14.50 m |
| Deadweight at scantling draft | abt. 82,000 MT |
| Gross tonnage (ITC 1969) | abt. 44,000 |
| Net tonnage | abt. 27,000 |
| Cargo holds | 7 single-skin holds with hopper & topside tanks; No.4 hold dual-purpose ballast |
| Cargo hold volume (grain, incl. coamings) | abt. 98,670 m³ |
| Deck cranes | None (gearless) |
| Cargoes | Ore, coal, grain and other dry bulks (no deck cargo, no steel coils) |
| Main engine | MAN B&W 6G50ME-C9.6 (Tier III with HP SCR), SMCR 7,490 kW, NCR 6,292 kW |
| Service speed | abt. 14.0 kn at design draft, NCR with 15% sea margin, ESD fitted |
| Daily fuel consumption (Tier II) | abt. 24.6 t/day at CSR |
| Endurance | abt. 25,000 nautical miles |
| Fuel / MGO / FW capacity | abt. 2,054 m³ HFO · abt. 497 m³ MGO · abt. 426 m³ FW |
| Complement | Crew class — full accommodation per Spec |
Photographs

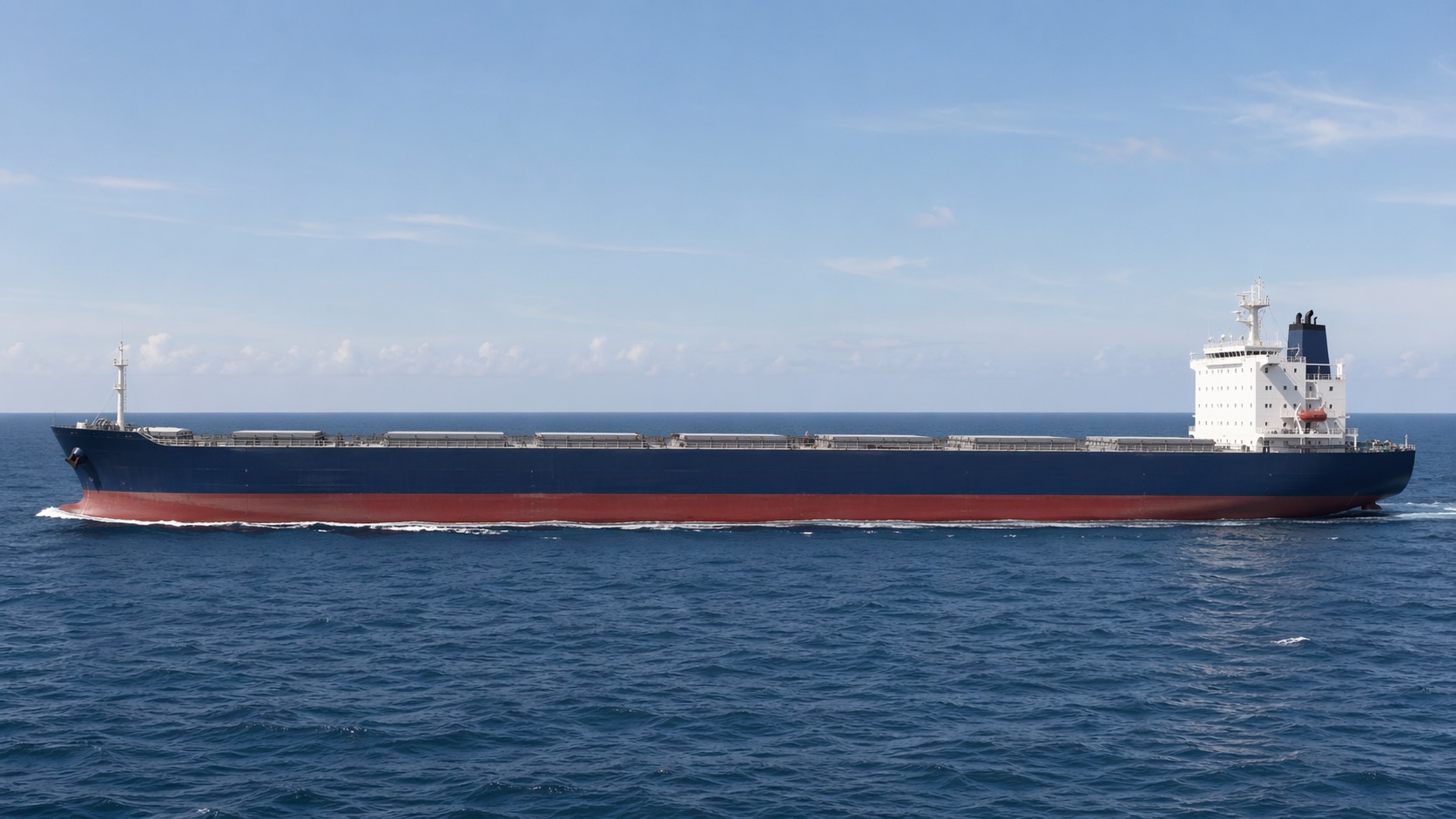

Representative image shown. Actual photographs of this vessel, general arrangement drawing and machinery / equipment inventory are shared with qualified buyers under NDA.
Documentation available to qualified buyers
- Outline specification (contract version, English / Chinese bilingual)
- General Arrangement Plan
- CCS class notation schedule
- IOPP, IAPP, BWMC, AFS, ISPP, MLC, ISM / ISSC certificate plan
- Hold capacity, deadweight and ballast plans
- Owner / builder commercial heads of terms
Documents are released after signature of a standard confidentiality undertaking. Please contact our sale & purchase desk for the NDA template.
